Angle-Pattern Binder Adaptor – 3.3mm x 99mm – Pair

Type

Binder-Style

Design

Angle-Pattern

Needle Diameter

3.3 mm

Needle Length

100 mm

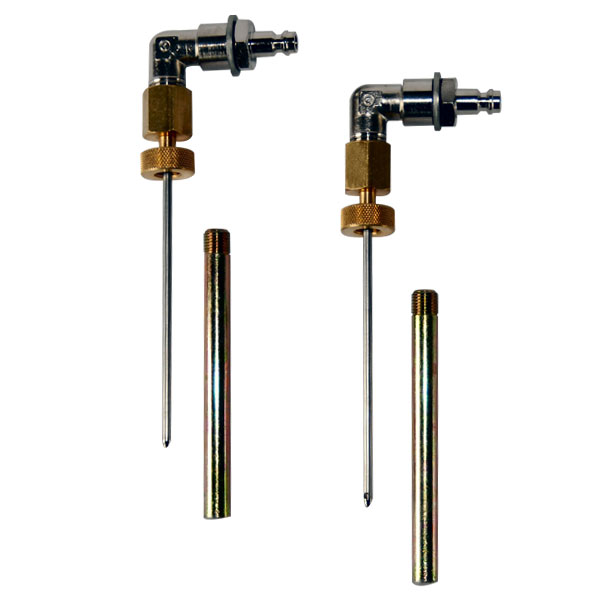

A PAIR of angle-pattern, Binder-style, connection adaptors, complete with 3.3mm diameter x 99mm long needles.

These connection adaptors are designed to be used to take readings from extended pressure-test-points, in heavily lagged chilled water systems.

NOTE: Care must be taken to prevent the end of the needle from entering the flow-way, as this may create unsteady readings due to impingement.

The insertion probe has a brass body and a stainless steel needle. The knurled ring has a 3/8″ UNF female thread to suit the corresponding male thread on a Binder-style pressure-test-point. Supplied with an O-ring fitted at the base of the needle to assist sealing on the pressure-test-point (effective needle length with O-ring fitted is circa 97.5mm).

The elbow and quick-release plug are nickel-plated brass and the Dowty washer is mild steel with a bonded nitrile seal.

P.T.F.E. thread-sealant is applied to the joint between the insertion probe and the elbow, thus creating a solid seal.

Directly compatible with the quick-release coupling on all Comdronic connection tubes.
